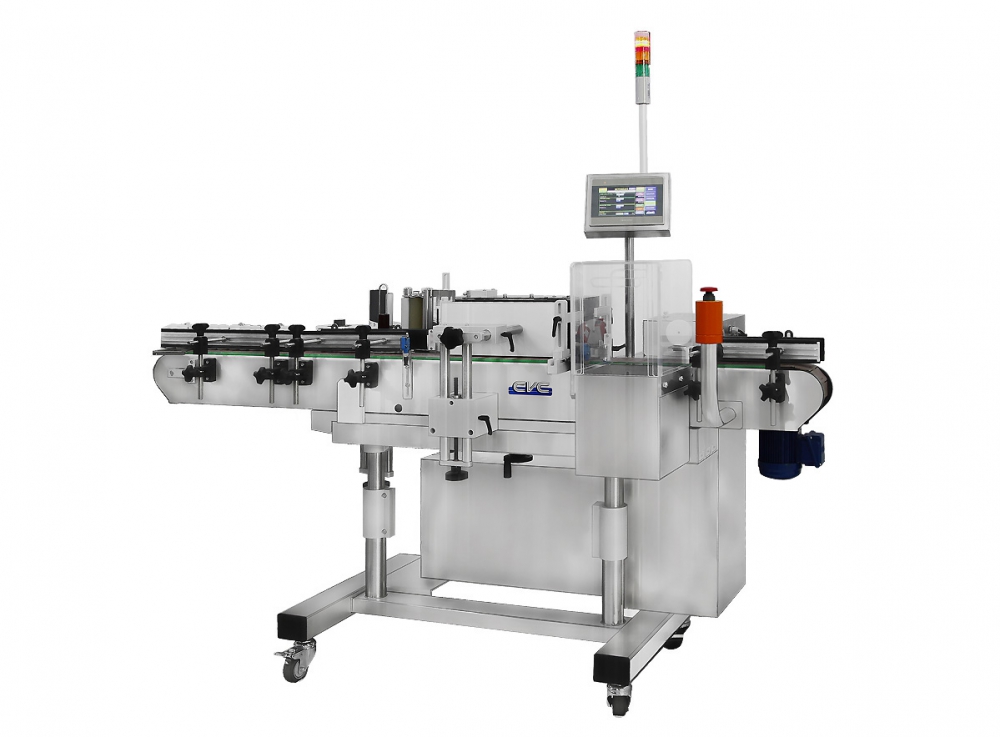

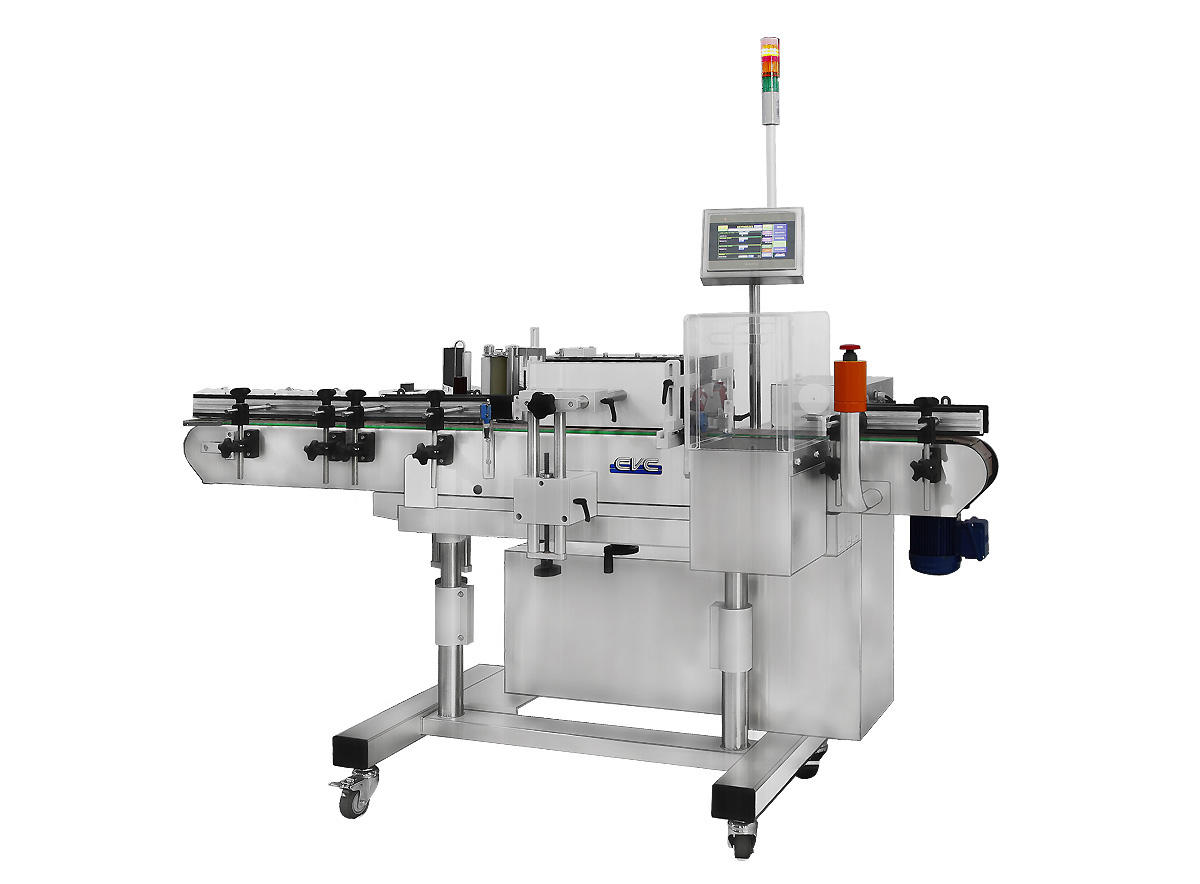

The CVC 300.U2 Wrap-Around Labeler is built to
automatically apply pressure sensitive labels
onto round containers at up to 200 bottles per
minute. The CVC 300.U2 is servo motor controlled,
comes standard with a touch screen HMI, and
can be ordered with various inspection options
including bar code verification, vision, and missing
label detection. The CVC 300.U2 labeling system
is an ideal machine for contract packagers
and manufacturers serving the pharmaceutical,
nutraceutical, and food markets.l, food, cosmetic, personal care, and household product markets.
The CVC 300.U2 labelers include our SelfSet™
software which utilizes a high frequency encoder
for extremely easy setup and wrinkle free labeling
at the touch of a button. It can run stand alone or
integrated into a full packaging line.
STANDARD FEATURES
Self Set™ auto adjusting control system
Stainless steel frame on lockable casters
Stainless steel flat-bed conveyor with 4" wide table top chain (raised sanitary bed) Upgradeable to 6" wide
Touchscreen HMI
Label head with up to ± 1/32” accuracy (* bottles / containers dependent)
Label sensor for paper or opaque labels
Product sensor with opaque and clear bottle mode
Variable speed separator wheel
Type 304 stainless steel construction
ISO 9001 : 2015 certified
CVC 300.U2
CVC 300.U2
CVC 300.U2
TECHNICAL SPECIFICATIONS
AVAILABLE OPTIONS:
Hot Stamp (Lot/Date Coding)
Integrated Thermal Encoder(Lot/Date, Bar Code and Graphics)
Adjustable tilt for tapered bottles
Bottle Reject system (air blow or cylinder)
Clear Label Sensor
Custom Wrap Belts
Custom Feed Screws
Infeed and Outfeed Conveyor Extensions
Bar Code verification
Detection for end of label roll or/ and label web break off(Factory Installed Only)
Missing Label Detection System (UV)
Oufeed Turntable
Missing Imprint Check system

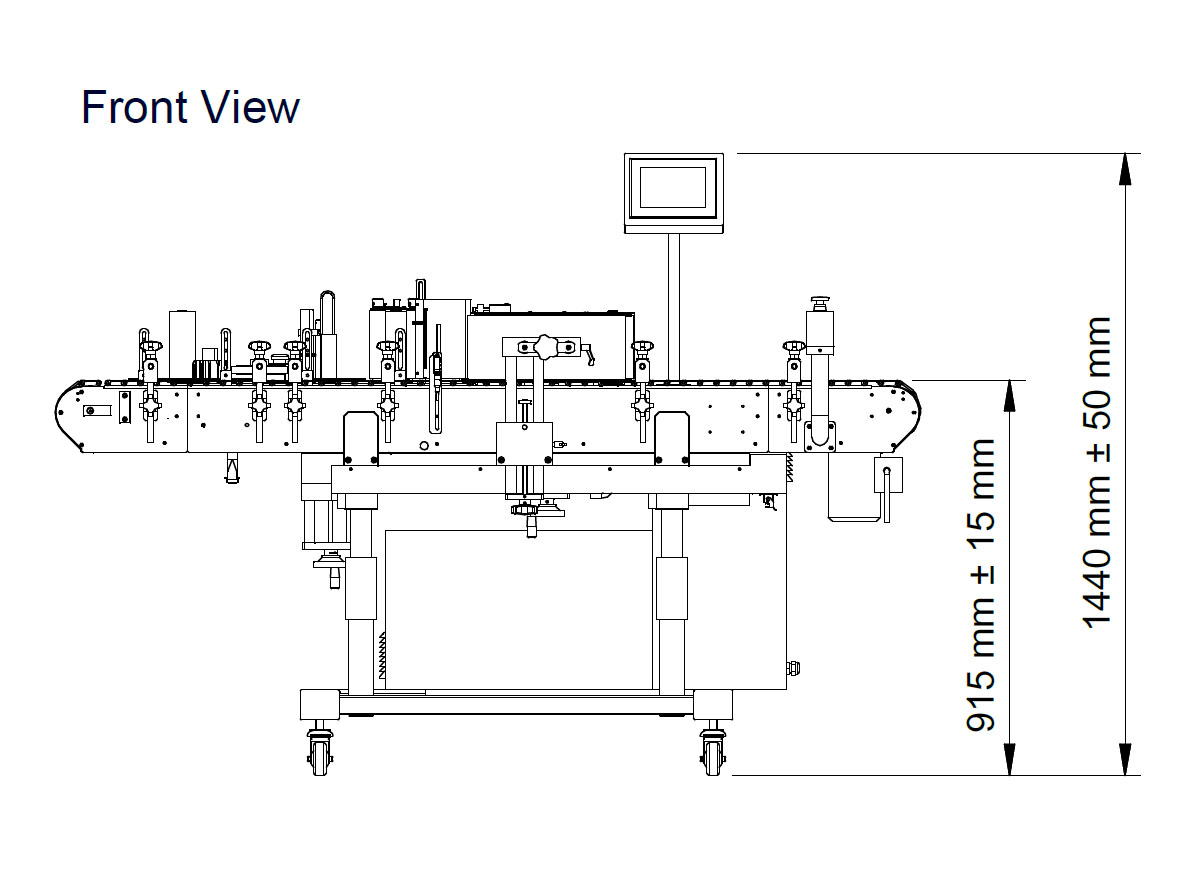

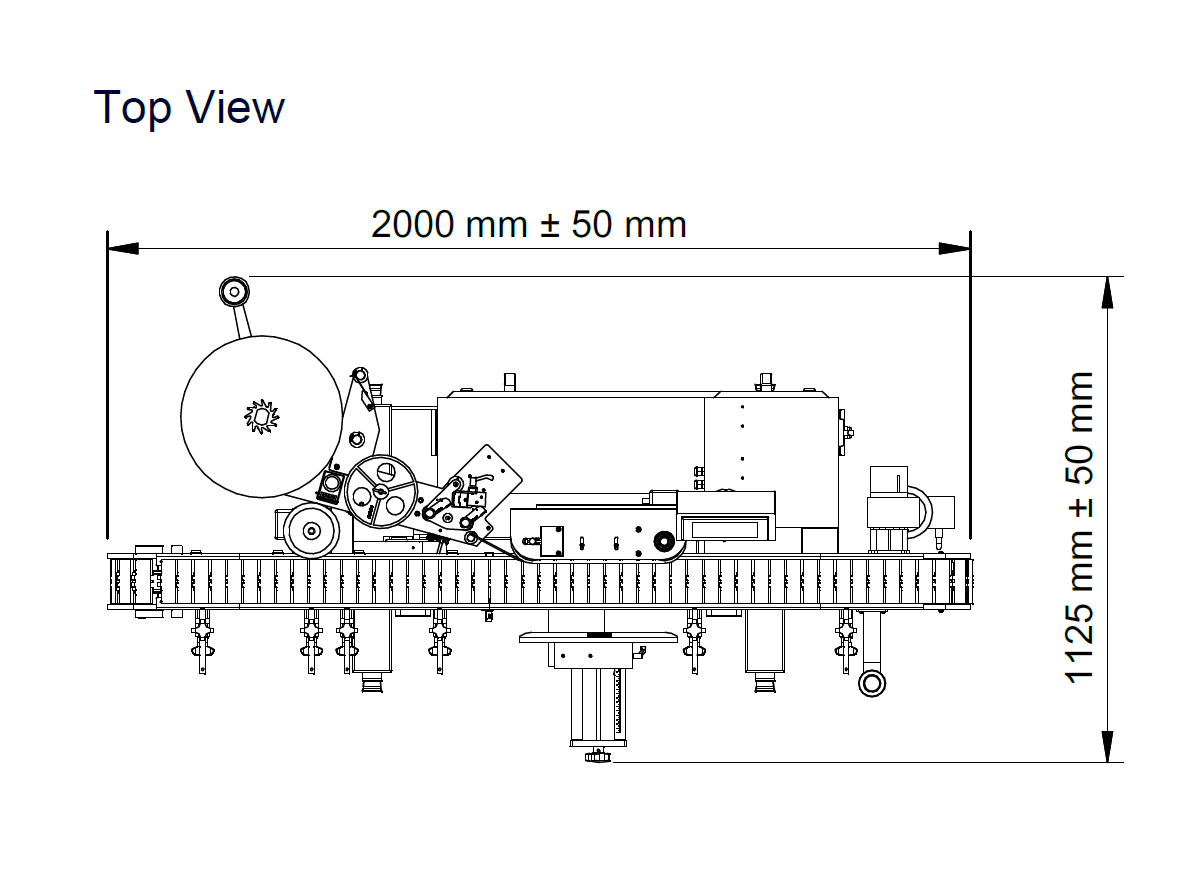

MACHINE LAYOUTS:
Technical data contained in this material are not binding and may be subject to change without prior notice.
All CVC labelers include our patented Self Set™ software which utilizes a high frequency encoder for extremely easy setup and wrinkle free labeling at the touch of a button.
Technical Specifications
CVC 300.U2 Technical Specifications
Type
U2
Productivity
Up to 200 BPM (base on 60 ml (Ø 40 x H. 77 mm) round bottle, labele L. 50 x W. 40 mm, subject to trial confirmation)
Applicable Size
Bottle:
Dia.: Ø 25- 102 mm (1”- 4”)
Height: 50- 320 mm (2”- 12 1⁄2”)
Labeler:
Width: 15- 220 mm ( 1⁄2”- 8 3⁄4”)
Length: 15- 254 mm ( 1⁄2”- 10”)
Power source
110/220 V, 50/60 HZ, 1 PH
Power Consumption
880 VA (110V: 8 A, 220V: 4 A)
Air Pressure
6 bar (85 psi)
Air Consumption
50 NL/min (for optional reject and Lot/Date printer)
Consumption Machine Dimensions
2,000 x 1,125 x 1,440 mm (6’-6” x 3’-7” x 4’-7” )( L x W x H )
