Tablet/Capsule Counter and Filler

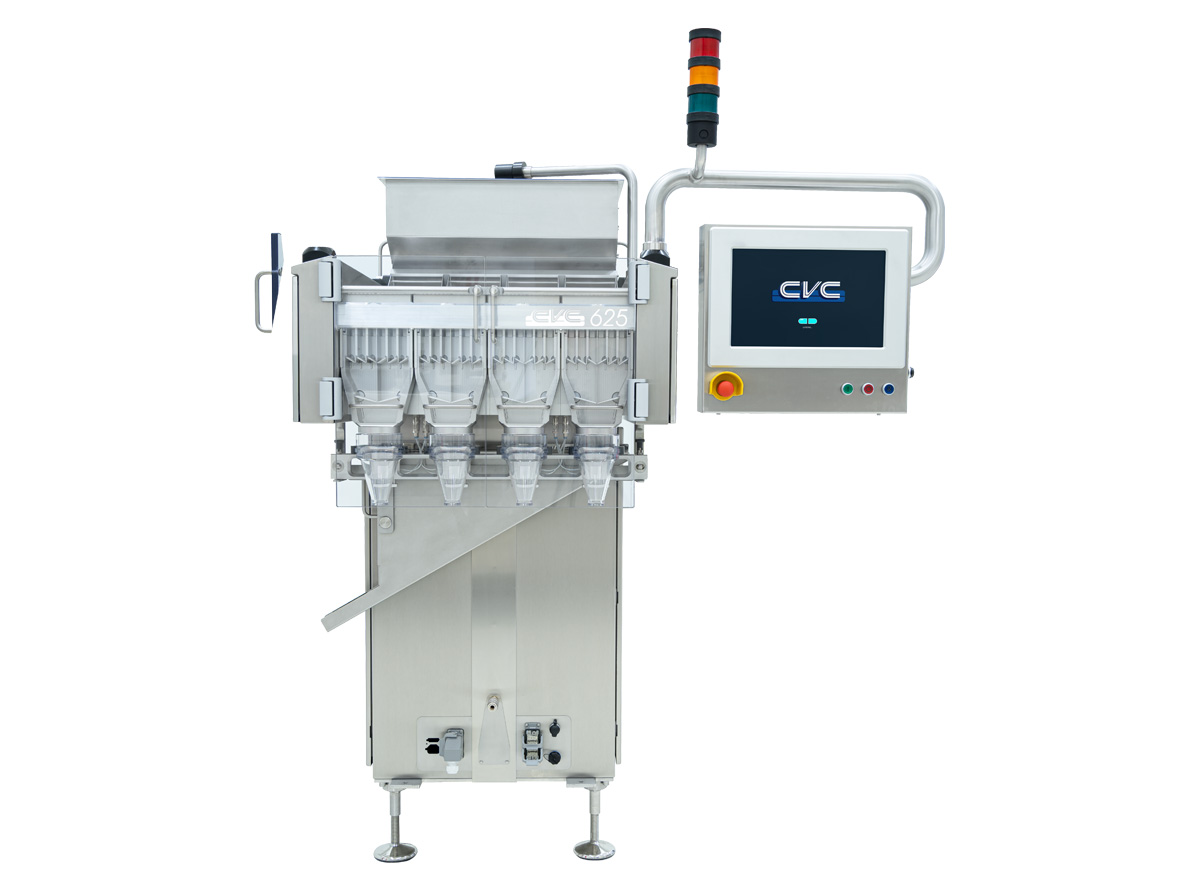

CVC 625x4

The new CVC 625x4 counting machine accommodates four counting modules for higher output and performance. This high-speed counter can be easily integrated into new or existing bottle filling and packaging lines.

STANDARD FEATURES

  • 100% counting accuracy
  • Applicable tablet/capsule: length (oblong) 3-30mm, diameter (round) 3-20mm
  • Machine capacity is up to 200 bottles per minute
  • Modular design counting heads: 4
  • Counting Channels: 6 per counting head
  • User friendly operation interface
  • Less foot print of 3.6 meters including conveyor
  • 100% positive bottle handling—servo driven screw based feeding mechanism
  • Two-stage servo-driven flap system
  • Unique servo-driven product dosing mechanism
  • Machine controls quality of output by monitoring the settings of operator with rejections of bottle not meeting standards. It features the counter for optimized output and performance
  • 21 CFR based touch screen terminal makes achieving the regulatory requirements by default
  • Front transparent PC safety guards secure for safe operation
CVC 625x4
CVC 625x4

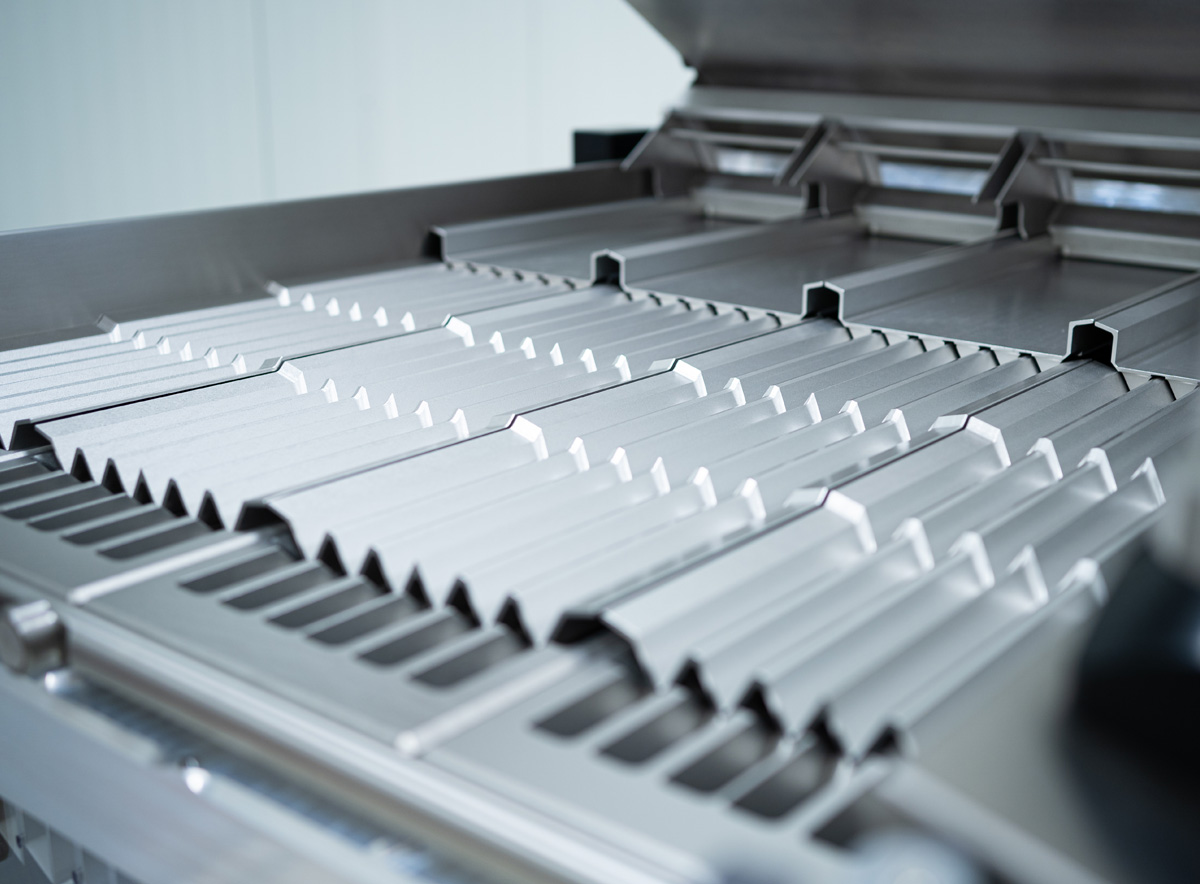

Four counting modules optimize counting performance, each counting module equips with 6 V-shape counting channels
Four counting modules optimize counting performance, each counting module equips with 6 V-shape counting channels

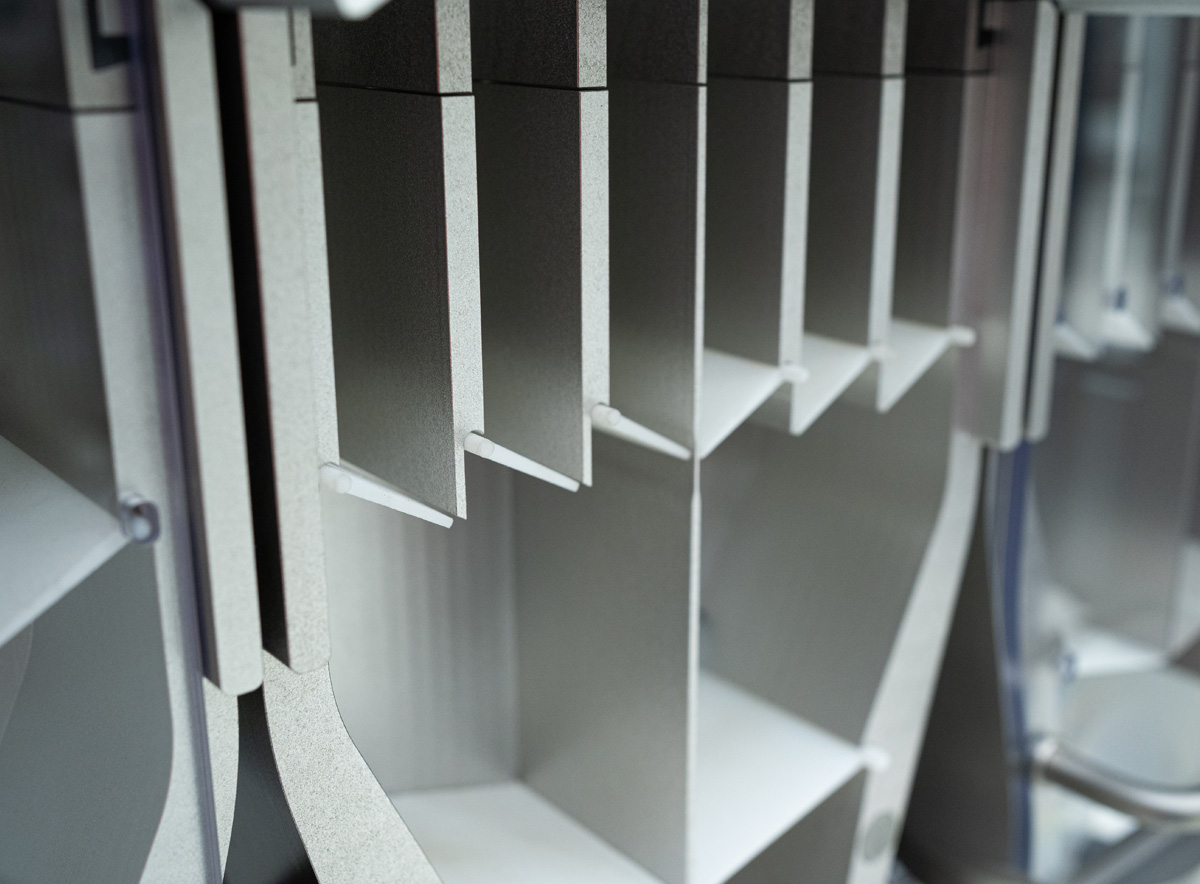

two-stage servo driven flaps
two-stage servo driven flaps
Previous Next Play Pause
CVC 625x4 Four counting modules optimize counting performance, each counting module equips with 6 V-shape counting channels two-stage servo driven flaps

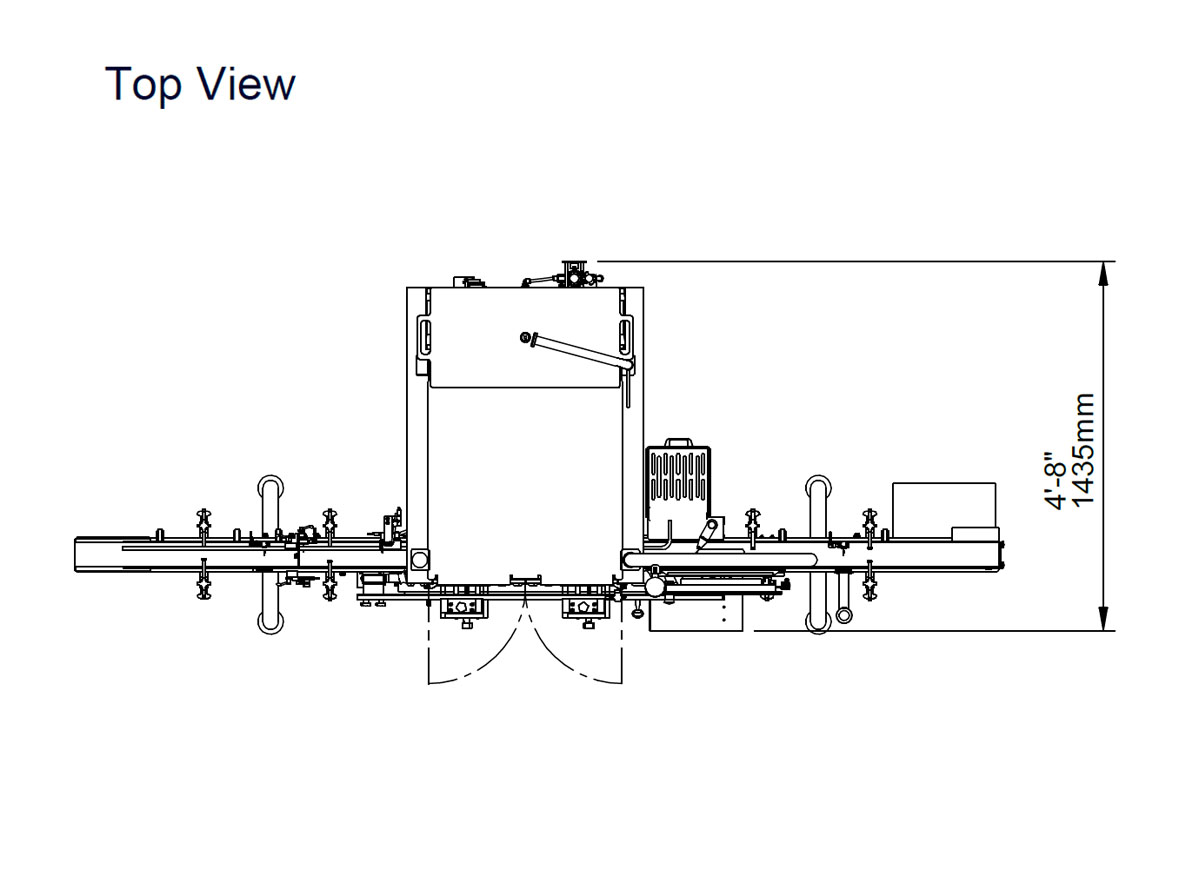

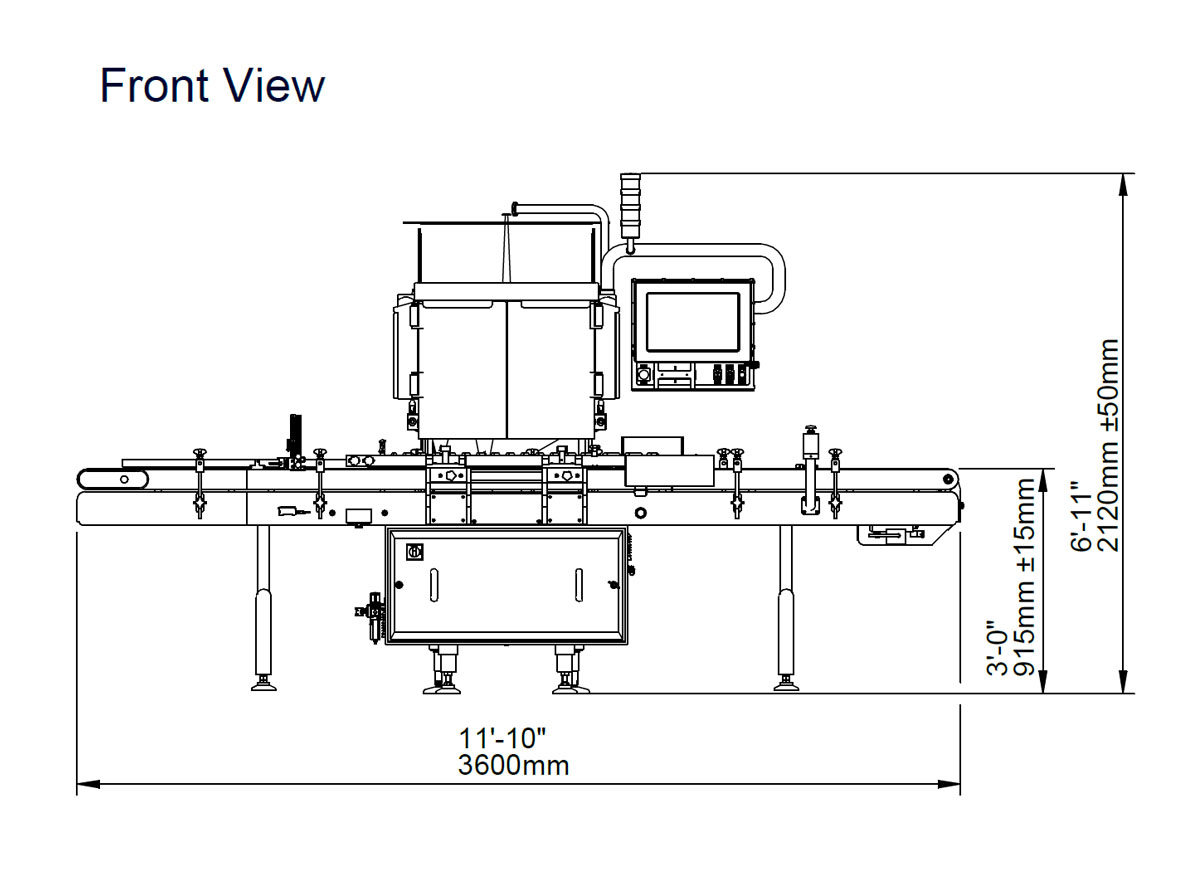

MACHINE LAYOUTS:

The dimensions shown are for standard machine. The conveyor can be extended: the length may vary based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year par ts warranty. Full Warranty details are included in our equipment proposals or can be found on our website.

Technical data contained in this material are not binding and may be subject to change without prior notice.

Technical Specifications CVC 625x4 Technical Specifications
Productivity Up to 200 BPM (100 counts/10 mm Round, Concave, Coated Tablets, subject to trial confirmation)
Applicable Size Tablet:
Dia./ Width: 3-20 mm (1⁄8” to 3⁄4”)
Height: 3-30 mm (1⁄8” to 1 1⁄4”)
Bottle:
Dia./ Width: 30-120 mm (1 1⁄4” to 4 1⁄2”)
Height: 45-200 mm ( 1 3⁄4” to 7 3⁄4”)
Power source 230 V, 50/60 HZ
Power Consumption 1,940 VA
Air Pressure 5 Bar
Consumption Machine Dimensions 3,600 x 1,435 x 2,120 mm (Including conveyor) (11’-10” x 4’-8“ x 6’-11”)
Machine Weight 1,760 kg (3,881 lbs)
